Automatic PPGI IBR Panel Single Layer Trapezoidal Metal Roofing Roll Forming Machine

Our machine that makes metal roofs has a long service life, simple operation and easy to use, we provide network after-sales service for life. A strong behind-the-scenes team makes your purchase worry-free.

· Working Flow

· Model Drawing

color roof machine

    Name:Feeding table

    1.Function:Put the sheet into the machine

    2.Benefits:Can ensure the sheet smooth and flat

    3.Hand knife:Can save material

    Name:Feeding table

    1.Function:Put the sheet into the machine

    2.Benefits:Can ensure the sheet smooth and flat

    3.Hand knife:Can save material

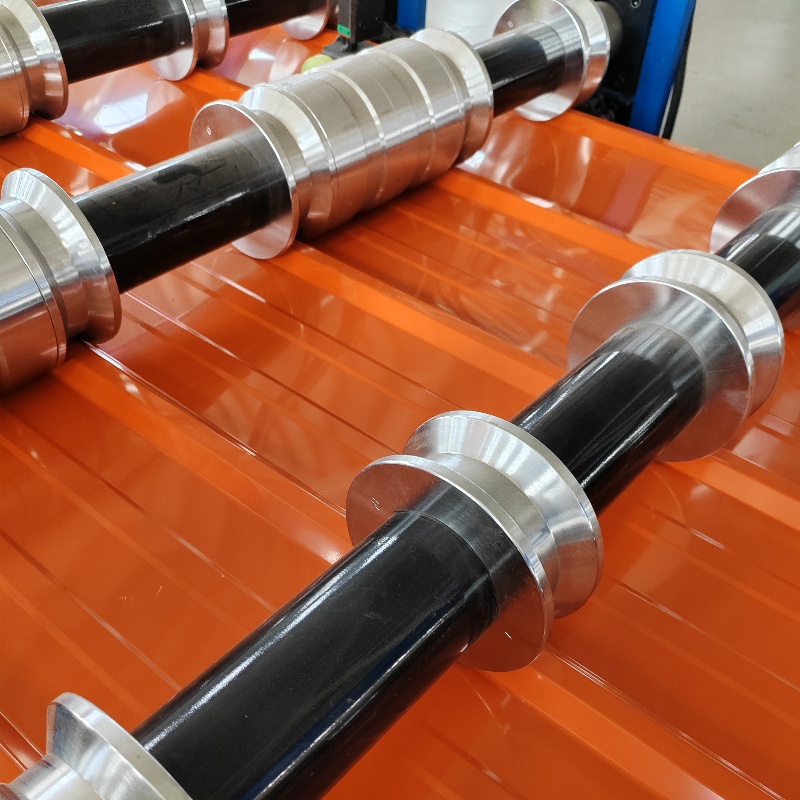

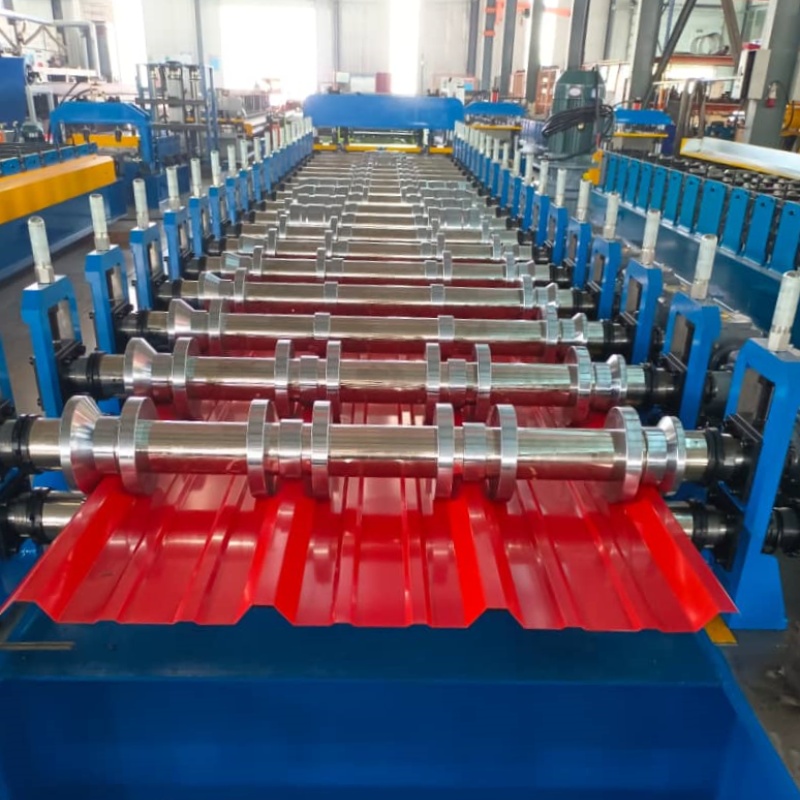

   Name: Main rollers

   1.Material:45#High carbon steel

   2.It is forged, polished, heat-treated and finally chromeplated.

   The wheel is smooth and hard,do not scratch the sheet material.

   Name:Computer Control Cabinet

   1.Brand:LICHAO,DELTA,SIEMENS.(According to customers inquirement)

   2.Opreation language: English/Russsian/Spanish/ Chinese

    Name :Hydraulic station power

    Hydraulic station power: 4Kw

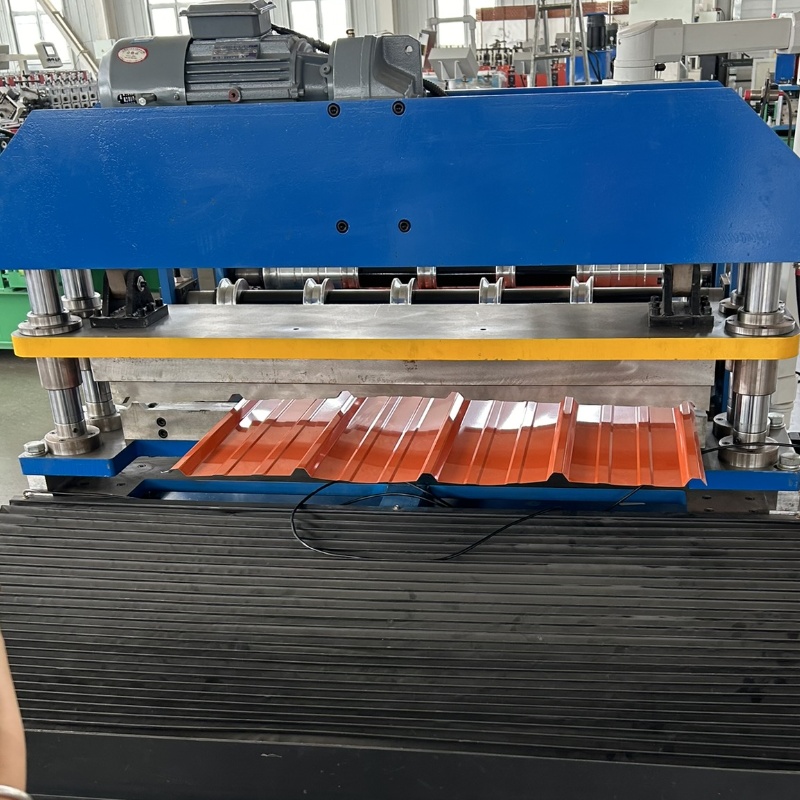

   Name: Cutting head The blade is cut by laser

   1.Material is Cr12 mov.16mm Double guide post+hydraulic drive

   2.Guide post:45#steel Quenching is done before heat treatment,

      can guarantee the surface smoothness and hardness.

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

- 2.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug

the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for

technicians travelling abroad.

- 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for exchanged

the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for

send the new parts,the buyer need bear the express cost.

- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the

machine,they can teach you how to operater the machines.

 · Relative Raw Material

Q：What service can you provide before order?

A：About the pre-sale service, We provide professional solutions according your demands,such as design、

technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory

and know more our factory.

Q：Can you be responsible for transport?

A：Yes,we owned expert export team, we can arrangement for you to your destination port or address.

Q：Do you have after sales support?

A：Our engineer can supply remote-video technical support and teach your worker.

Q：How many workers is needed for the machine operation?

A：One worker is engough, the machine use automatic PLC control system.

Q：What's the warrany for our machine?

A：We provide 2years guarantee and provide lifetime technical support.

Q：If you can accept OEM? Design and manufacture according our photo.

A：Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according

your demands.
